The Vector 75 is ideal for broadcast cameras and lenses, whether ENG or full box lenses. The unique pantographic balance mechanism is quick and simple to adjust, perfectly balancing even large payloads. This counterbalance mechanism, combined with the Vinten infinitely adjustable LF drag system provides the ultimate in smooth, precise quality of movement.
The head includes a retractable “T” bar slide plate positioner for easy positioning of the camera package, and standard prompter bar mountings on the front of the platform.

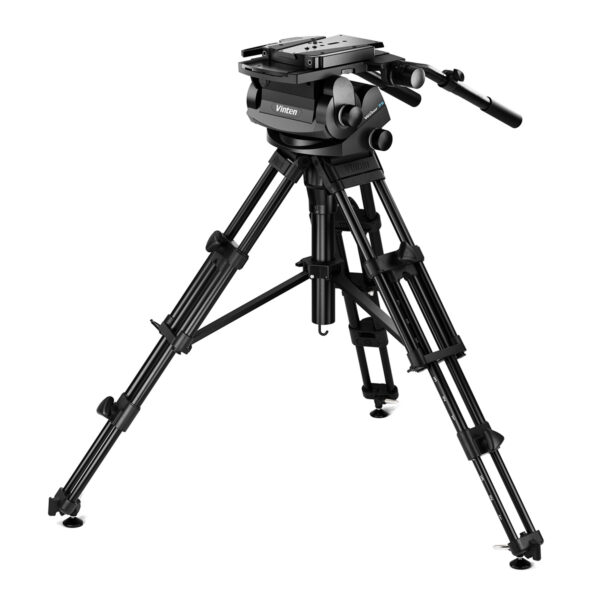

In this system the Vector 75 is paired with the HDT-2 two-stage heavy-duty tripod to create a dependable solution for fixed positions in both studio and OB. Offering the widest height range available, the HDT-2 features maximum torsional rigidity, and a clamping system that provides progressive resistance with a positive stop to indicate when the leg is locked, making it ideal for large camera and lens combinations.
The HDT-2 also includes a single piece mid-level spreader for exceptional strength and easy removal, an integral carry handle for convenient repositioning, and three-position swivel feet with spikes, pads, or sockets to suit different locations. Engraved leg markings enable rapid, even deployment, while an integral bubble level allows precise levelling adjustments.
Technical Specifications
| Head Specification | See part number: V4095-0001See part number: V4095-0001 |
| Height | 76.6 cm to 171.5 cm30.16 in to 67.52 in |
| Payload | 75 kg165.34 lb |
| Tripod Specification | See part number: 3902-3See part number: 3902-3 |
| Weight | 35 kg77.16 lb |
In The Box
Vector 75 (V4095-0001), additional telescopic pan bar Vector (3219-82), wedge plate (3053-3), tripod HDT-2 (3902-3)
